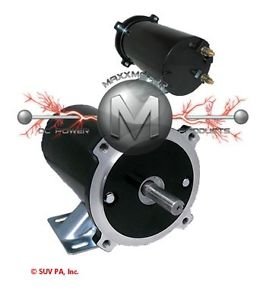

90151N Motor Replacement for Arctic and Canimex Salt Spreaders 1 HP 1800 RPM
Spreader Motor, Replaces Arctic, Blizzard, Curtis, Fisher, SnoWay, Western
Salt Spreader Motor // 12V // Bi-Directional // DBB // Permanent Magnet // 1 HP // 1800 rpm // 5/8" Full Key Way Shaft
Applications: For Artic AG6E©, AG8E©, AG10E© and Canimex Salt Spreaders
Part #: 50090
Rotation: Bi-Directional
Aftermarket Motor
Shipped from Kokomo, Indiana
Overall Length: 12.00 in.
Shaft Outside Diameter: 5/8 in.
Shaft Style: Keyway
Terminal 1 Size: 5/16 in. - 24
Terminal 2 Size: 5/16 in. - 24
Housing Finish: Comm End Cover and Drive End Plate is cast aluminum with black powder coat housing.
Weight: 17.6 lbs.
Cross References:
Arctic: 90151N
Canimex: 120Z402H, 120Z402H1, 120Z402H2, W4BB1601
Leeson: 108046, 108047, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, C4D17NK7E
Scott Motors: 4BB-01601, 4BB-1601
Replaces:
Arctic AF6E, AG8E, AG10E, 90151N
Blizzard Ice Chaser, 95755-1
Curtis SnoPro 550 Series, 1CS6E-M
Fisher Polycaster, 195755 95755-1 95755-2
SnoWay V Box Electric, 96113617 96111764
Western Tornado, 95755 9585
12 volt, Spreader, Motor
Shaft Size 5/8"
Weight: 23.5 lbs.
